Figuring Out the Visuals: The Wormhole

March 16, 2018

When I think about the "extra-dimensional", I picture breaking through dimensional barriers, passing through portals, or some kind of swirling wormhole floating in midair.



I even found this really awesome looking portal effect by VFX Artist Orion Terry. I highly doubt I can code anything that looks remotely as cool as this though:





// Note to Self: Maybe I can start every first touch as a portal opening from the middle.



Okay, baby steps...



First I needed to code a simple spiral, no biggie. I followed a tutorial I found on Lynda.com (Thank goodness for CityU) and added a few alterations to the code...

// Based on tutorial from... Lynda.com - Processing: interactive Data Visualisation - Creating spirals

(https://www.lynda.com/Processing-tutorials/Creating-spirals/97578/113188-4.html)



float x, y;
float radiusCircle = 100;
float rotation = 0;



void setup() {
  size(300, 600);
  smooth();
}



void draw() {
  translate(width/2, height/2);
  rotation -= 0.35;
// Rotate to "fake" the spiral animation
  rotate(rotation);
  background(0);



// Draw spiral line. Create a variable for the previous version of the x and y vals to connect new and old.

  float px = -999;
// Prev. val of x
  float py = -999;
// Prev. val of y

  float radiusSpiralLine = 0.5;
  strokeWeight(4);            // Smaller weight, thinner and smoother



  for (float angle = 0; angle < 200; angle += 0.025) {

                              // Smaller increments

    radiusSpiralLine += 0.025;
    x = cos(angle) * radiusSpiralLine;
    y = sin(angle) * radiusSpiralLine;



    if (px > -999) {          // Ignore first loop because no prev. val.
      float alphangle = map(angle, 0, 200, 70, 0);

                              // Creates dark effect on the rim of spiral

      stroke(100, 199, 255, alphangle);
      line(-x, -y, -px, -py);
    }


    px = x;
    py = y;
  }
}

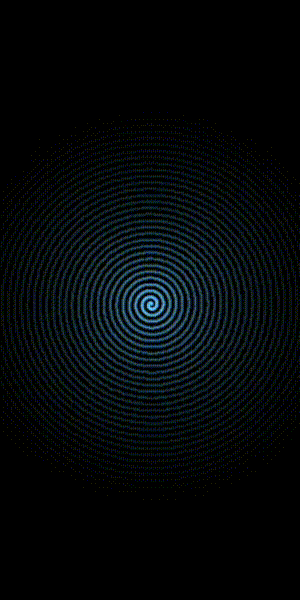

...which returned this:





Not as impressive as Terry's animation, but it's a start. I'll explore other visualisation methods.



Update: While editing this post, I realised my phone lock screen's animation looked cool. Maybe I could use this.



[Insert video of my phone screen's unlocking animation]
